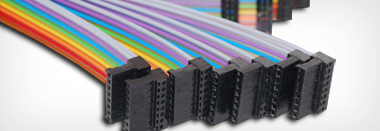

HE13 HE14 Cable Assemblies


HE13/14 cable assemblies are available in single in line (SIL) and dual in line (DIL) configuration.

A modular series that is competitively priced, all connectors are locking and polarized for reliability and quick error free assembly.

A choice of crimp or IDC versions offers an interconnect system to match your preferred method of termination for low power and signal transmission applications.

PCB headers are available in horizontal & vertical styles with an SMT option for the SIL horizontal header.


Fully compatible with all HE13/14 connectors.


  • Modular connector system for signal transmission and low power applications
  • Crimp or IDC termination
  • Single action termination IDC version for use with 2.54mm (0.1") ribbon cable or discrete wire
  • SIL or DIL 2.54mm (0.1") housing and crimp connector systems for use with discrete wire
  • Four sided crimp contactsHE13 HE14 Cable Connector
  • Surface mount (SMT) header in SIL version
  • Polarised and latching connections
  • Surface mount (SMT) and through hole
  • Fully compatible with all HE13/14 connectors
  • Compliant with IEC 603-8 and NFC 93-401
  • Tin or gold plated contacts
  • Suitable for lead free soldering processes
  • RoHS compliant
  • Please see individual datasheets for full details
  • Vertical and horizontal options
